VA01-BP70/LL-36A (EF3546) 24v 12" Spal Puller Fan

VA01-BP70/LL-36A (EF3546) 24v 12" Spal Puller Fan Open Blade Side

SPAL Automotive

SPAL Thermo Puller Fan - 12" - 24V - 1711 CFM - VA01-BP70/LL-36A

Name: SPAL Thermo Puller Fan - 12" - 24V - 1711 CFM - VA01-BP70/LL-36A
Brand: SPAL Automotive
SKU: EF3546
Price: 306.9 AUD
Availability: InStock

$306.90

Tax included. Shipping calculated at checkout.

EF3546

Product variants

Quantity

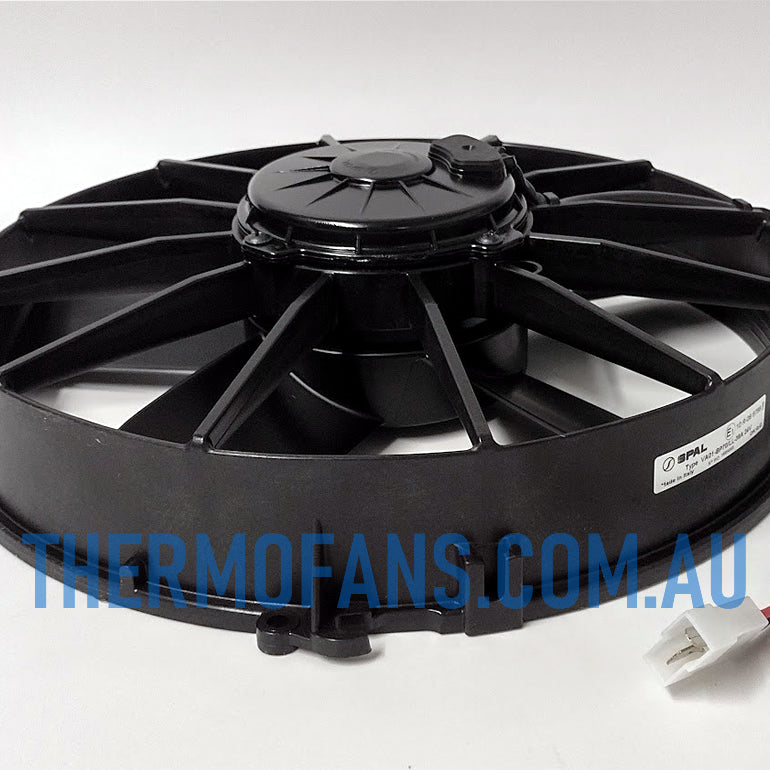

The VA01-BP70/LL-36A (EF3546) 24V 12" SPAL Puller Fan is a high-output thermo fan with a straight blade design and an airflow rating of 1711cfm / 2900m3/h.

Suitable for a range of machinery and auto applications, the VA01-BP70/LL-36A puller unit is triple-balanced for extended longevity and performance. Boasting an IP68-rated water and dust-proof motor of exceptional quality, this open-shroud SPAL fan is built to last and is supported by a 3-year manufacturer's warranty.

EF3546 12" SPAL THERMO FAN DETAILS
Spal Fan Model #	VA01-BP70/LL-36A
Voltage	24V
Flow Type	Puller
Blade Diam.	12 inch (305mm)
Blade Type	Straight
Shroud Type	Open Shroud
Amps	7.4
CFM	1711
M3/H	2900
Spec. Sheet	View Specifications
Warranty	View Warranty Info

EF3546 12" SPAL THERMO FAN DIMENSIONS
A	331mm / 13.03"
B	330mm / 12.99"
C	238mm / 9.37"
D	238mm / 9.37"
E	95mm / 3.74"

ABOUT SPAL

SPAL Automotive Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.

All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy.

SPAL fans are sold without extra mounting hardware. See the SPAL Fan Accessories section for these items.
