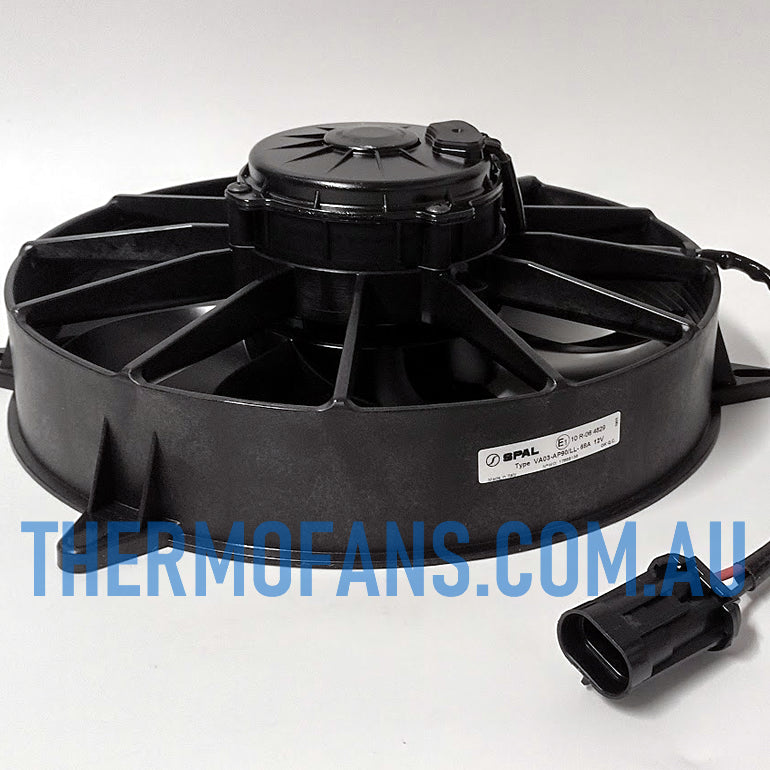

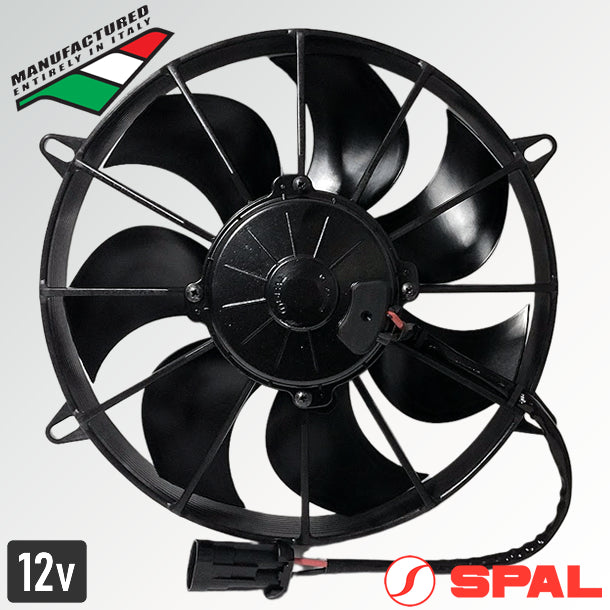

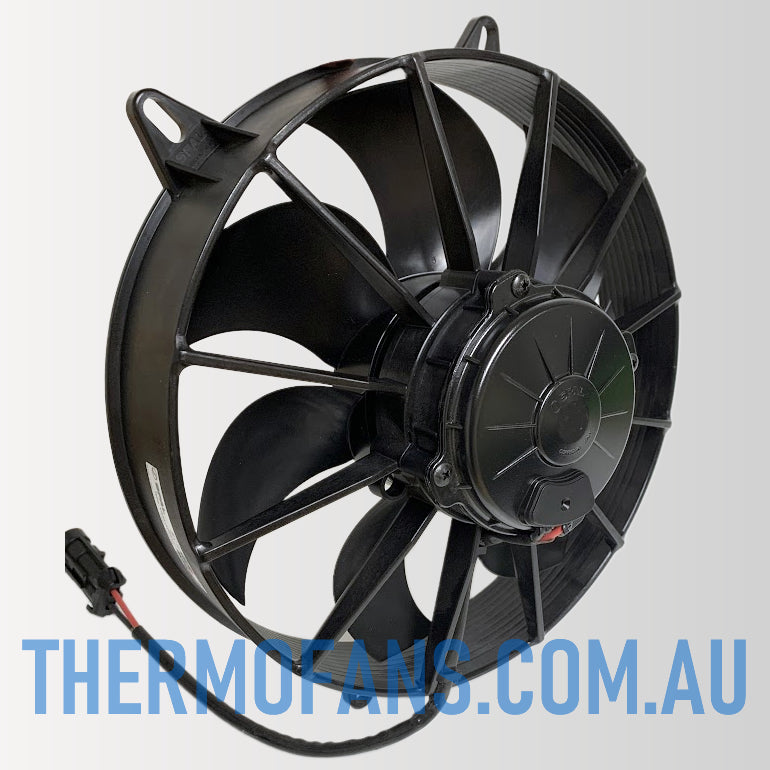

VA03-AP90/LL-68A (EF3587) 12v SPAL Puller Fan

VA03-AP90/LL-68A (EF3587) 12v SPAL Puller Fan Flat Angle

VA03-AP90/LL-68A (EF3587) 12v SPAL Puller Fan Flat Angle 2

SPAL Automotive

SPAL HP Thermo Puller Fan - 11" - 12V - 1605CFM - VA03-AP90/LL-68A

Name: SPAL HP Thermo Puller Fan - 11" - 12V - 1605CFM - VA03-AP90/LL-68A
Brand: SPAL Automotive
SKU: EF3587
Price: 359.7 AUD
Availability: OutOfStock

$359.70 Sold out

Tax included. Shipping calculated at checkout.

EF3587

Product variants

The VA03-AP90/LL-68A (EF3587) 12v SPAL Puller Fan is a high-output thermo fan suitable for a wide array of uses from high-performance auto cooling to industrial and other commercial applications.

The EF3587 11" SPAL Fan features an aggressive curved paddle blade design which can pull up to 1605cfm / 2720m3/h. Individually balanced for long life, this fan features a fully sealed IP68 water & dust-proof, long-life motor. SPAL fans are sold without extra mounting hardware. See the SPAL Fan Accessories section for these items.

Please note: The EF3587 SPAL fan has a Delphi Metri-Pack 630 connector.

EF3587 11" SPAL THERMO FAN DETAILS
SPAL Fan Model #	VA03-AP90/LL-68A
U.S. Part #	30102800
Motor Type	Long-Life IP68
Voltage	12V
Flow Type	Puller
Blade Diam.	11 Inch (280mm)
Blade Type	Curved / Skew Blade
Shroud Type	Semi-Open Shroud
Amps	24.5
CFM	1605
M3/H	2720
Spec. Sheet	VA03-AP90/LL-68A
Warranty	3-Year Manufacturers Warranty View Warranty Info
Included	SPAL Fan w/Delphi Metri-Pack 630 connector See SPAL Accessories for Mounts etc.

EF3587 11" SPAL THERMO FAN DIMENSIONS
A	304mm / 11.97"
B	315mm / 12.4"
C	173mm / 6.81"
D	299mm / 11.77"
E	111.5mm / 4.39"

ABOUT SPAL

SPAL Automotive Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.

All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy.

SPAL fans are sold without extra mounting hardware. See the SPAL Fan Accessories section for these items.
