ASA 0385 Fan Kits, 12V / 24V DC - Suits Oil/Air Coolers ASA 0176-0257, TT Rail 16-25

$0.00
Tax included. Shipping calculated at checkout.

ASA Hydraulik

ASA0385
The ASA Hydraulik 0385 range of cooler fans are high-output DC-powered fan kits designed as direct replacements or upgrades for ASA's 0176-0257A & TT Rail 16-25 Oil/Air Hydraulic Coolers.

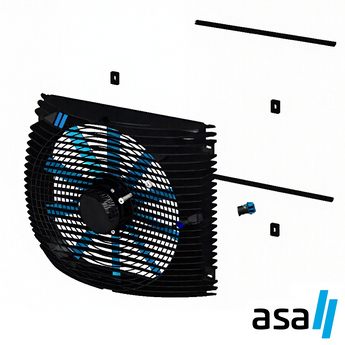

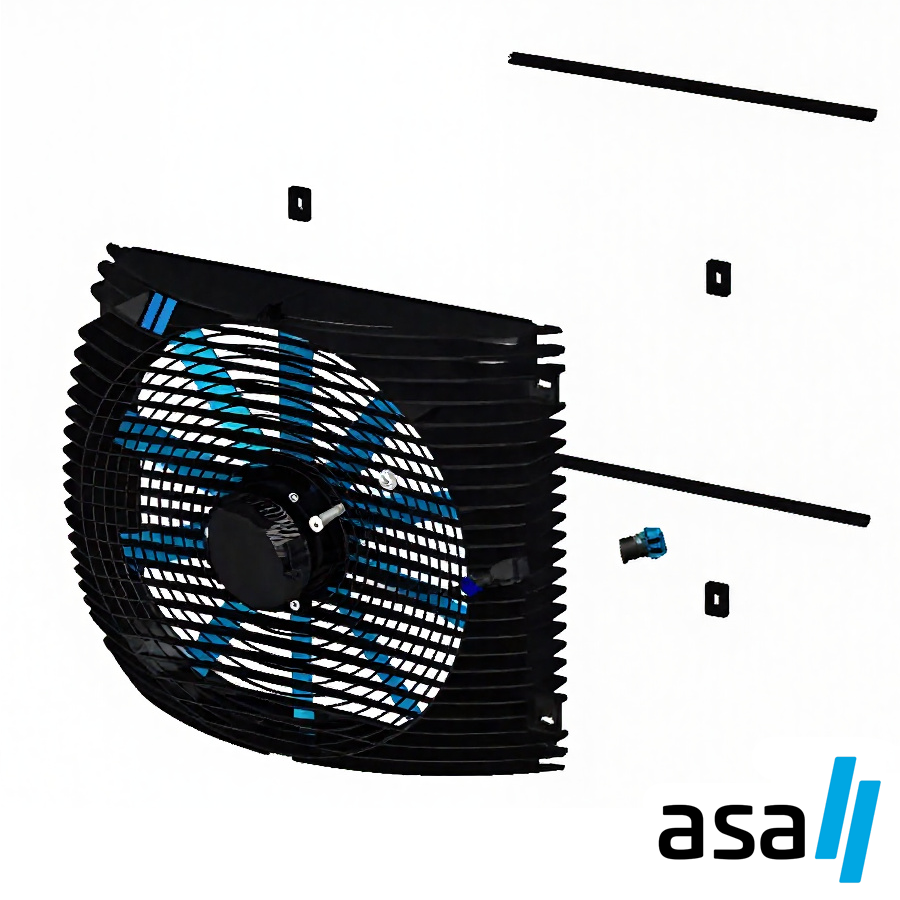

Kits include an IP68-rated axial fan with shroud/mounting, blade, motor, and associated hardware. Suitable for plug-and-play replacement and includes mating connectors for straightforward installation.

PRODUCT # SUITS VOLTAGE CURRENT* TYPE L WEIGHT
ILLELE0385A1 ASA 0176 - 0257AD01,
TT Rail 16 - 25		 12V 18.6A Pull 130mm 4.8kg
ILLELE0385A2 ASA 0176 - 0257AD02,
TT Rail 16 - 25		 24V 9.3A Pull 130mm 4.8kg
ILLELE0385S1 ASA 0176 - 0257AD01,
TT Rail 16 - 25		 12V 18.6A Push 130mm 4.8kg
ILLELE0385S2 ASA 0176 - 0257AD02,
TT Rail 16 - 25		 24V 9.3A Push 130mm 4.8kg
*Represents running current, allow for up to 3X on startup

ASA 0385 FAN KIT DIMENSIONS

View Specifications
Cross References
ASA PRODUCT # VOLTAGE REFERENCES
ILLELE1434A1
12V
ILLEVA1434A1 (ASA)
ILLELE1434A2
24V
ILLEVA1434A2 (ASA)
ILLEVA143GD02 (ASA)
F29P-24E8001-12S WPC (Comex)
ILLELE0240A1
12V
ILLEVA0240A1 (ASA)
F35-12E8001-23S WPC (Comex)
ILLELE0240A2
24V
ILLEVA0240A2 (ASA)
F35-24E8001-23S WPC (Comex)
ILLELE0240A3
12V
ILLEVA0240A3 (ASA)
F35-12E8105/FP-23S WPC (Comex)
F35-12E8105-23S WPC (Comex)
ILLELE0240A4
24V
ILLEVA0240A4 (ASA)
F35-24E8105/FP-23S WPC (Comex)
ILLELE0295A1
12V
ILLELE0295A1/PE107 (ASA)
F45-12E8106-16S WPC (Comex)
VA102-AP51/C-36A (SPAL)
ILLELE0295A2
24V
ILLELE029506 (ASA)
ILLEVA029502 (ASA)
ASAB029438 (ASA)
ILLEVA0295A4/PE107 (ASA)
VA102-BP51/C-36A (SPAL)
VA70A-BP51/C-36A (SPAL)
F45-24E8106/FP-16S WPC (Comex)
F25-24E8101/FP-09S (Comex)
ILLELE0295A5
12V
ILLEVA0295A5 (ASA)
ILLEVA0295A5/PE107 (ASA)
F45-12L8201-03S WPC (Comex)
F25-12L8201-09S (Comex)
ILLELE0295A6
24V
ILLELE0295A6B00 (ASA)
ILLELE0295A6B01 (ASA)
ILLELE0295A6/PE107 (ASA)
ILLEVA0295A6/PE107 (ASA)
VA102-BP78/LL/M/I1-99A (SPAL)
F25-24L8201-09S (Comex)
F25-24L8201/FP-09S (Comex)
F25-24F001/FP-09S (Comex)
F45-24L8201/FP-03S WPC (Comex)
ILLELE0295S5
12V
ILLEVA0295S5 (ASA)
ILLEVA0295S5/PE107 (ASA)
ILLELE0385A2
24V
ILLELE0385A4 (ASA)
ILLEVA0385AK (ASA)
ILLEVA0385A2 (ASA)
ILLEVA0385A4 (ASA)
ILLEVA0385A6 (ASA)
F22-24L8205/E4FPHT-08S WPC (Comex)
F22-24L8403/FPHT-08S WPC (Comex)
F22-24L8403/FPHT-08S WPC (Comex)
F22-24F003/EFP-08S (Comex)
VA73-BP71/VLL/M/I-65A (SPAL)
VA73-BP71/VLL/M/I5-65A (SPAL)
ILLELE0385A1
12V
ILLEVA0385AK (ASA)
ILLEVA0385A3 (ASA)
F22-12L8205/E4FPHT-08S WPC (Comex)
F22-12L8205/FPHT-08S WPC (Comex)
VA73-AP71/VLL/M/I-65A (SPAL)
VA73-AP71/VLL/M/I3-65A (SPAL)
ILLELE0385S2
24V
ILLELE0385S4 (ASA)
ILLEVA0385S4 (ASA)
F22-24L8205/E4FPHT-08B WPC (Comex)
ILLELE0385S1
12V
ILLEVA0385S3 (ASA)
F22-12L8205/FPHT-08B WPC (Comex)
About ASA Fans
About ASA DC Fan Kits
ASA Hydraulik DC fan kits support hydraulic oil cooling in mobile and industrial hydraulic systems where electric DC power is available.

Mobile Machinery
Construction equipment, agricultural vehicles, lifting platforms, cranes.

Vehicles and Transport
Trucks, mining vehicles, forestry equipment.

Industrial Hydraulics
Power units, presses, machine tools requiring compact, efficient oil temperature control.

Other Demanding Uses
Where high cooling performance, low pressure drop, and reliable operation under varying loads are essential (flow rates up to hundreds of lpm in compatible coolers).

Key Features:

Voltage Options
12V DC or 24V DC

Configuration
Axial fan with shroud/mounting, blade, motor, and associated hardware (e.g., mounting material, connectors).

Performance
Reliable airflow for effective cooling; high-performance variants (HP) available in some sizes for increased demand.

Durability
Robust construction suited to harsh environments, vibration-resistant, with options for pull/push configurations.

Compatibility
Primarily suits ASA's standard ranges, including Low Line series, TT Rail series (with patented rail system for flexible porting/add-ons), and ASA Series oil/air coolers.

Easy Integration
Plug-and-play replacement; includes mating connectors for straightforward installation.

For more information on the ASA range of products, please visit www.asahydraulik.com
