SPAL Thermo Puller Fan - 4" / 102mm Straight Paddle 12V - 147 CFM - 3.0Amps

SKU: EF3571

SPAL Automotive

Regular price $171.00

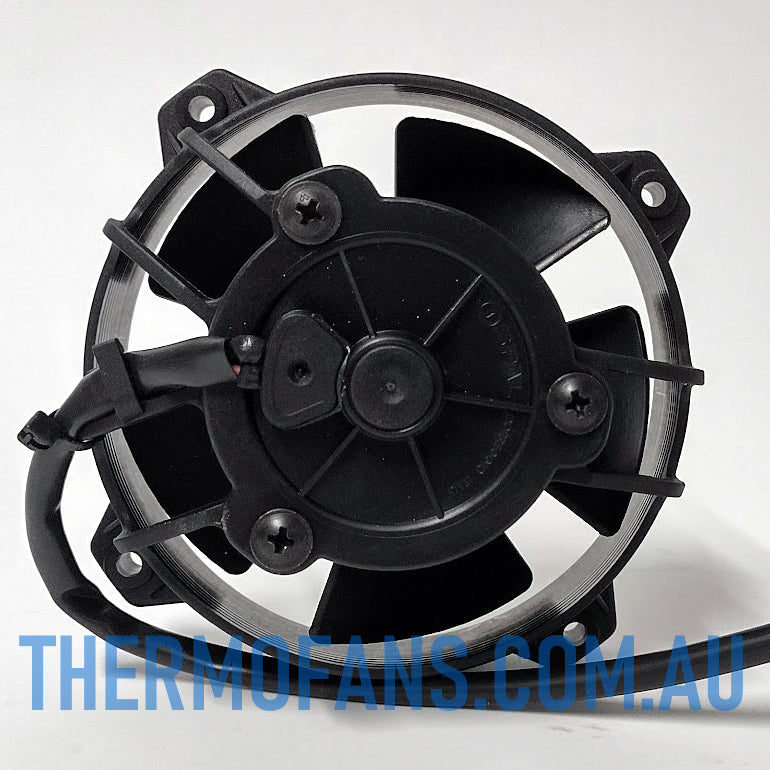

The VA32-A101-62A (EF3571) 12v 4" SPAL Puller Fan features an Open Guard Shroud and a Paddle Blade Design which can pull up to 147cfm / 250m3/h.

Please note this fan does not have feet slots and therefore cannot be used with mount feet attachments.

The EF3571 4" Fan is individually balanced for long life and features a fully sealed IP68 waterproof motor of superior quality and backed with a 3-year manufacturers warranty.

EF3571 4" SPAL THERMO FAN DETAILS
Spal Fan Model # VA32-A101-62A
U.S. Part # 30103018
Voltage 12V
Flow Type Puller
Blade Diam. 4 inch (96mm)
Blade Type Paddle
Shroud Type Open
Amps 3.0
CFM 147
M3/H 250
Spec. Sheet View Specifications
Warranty View Warranty Info
EF3571 4" SPAL THERMO FAN DIMENSIONS
A 109mm / 4.29"
B 109mm / 4.29"
C 82mm / 3.23"
D 82mm / 3.23"
E 60mm / 2.36"
Spal Fan VA32-A101-62A



Article: What Do SPAL Model Numbers Mean?



All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy.
