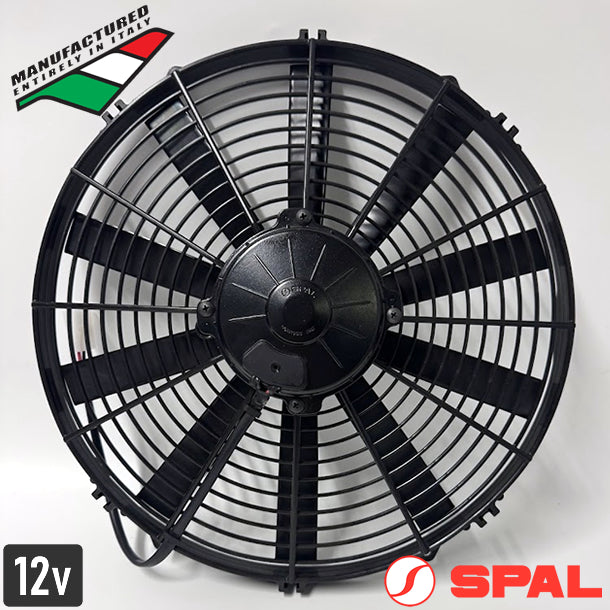

SPAL Thermo Puller Fan - 14" / 356mm Straight 12V - 1430 CFM - 15Amps

SKU: EF3647

SPAL Automotive

Regular price $288.00

The EF3647 12v 14" SPAL Puller Fan is a High Output Thermo Fan featuring a Finger Guard Shroud and a Straight Blade Design which can pull up to 1430cfm / 2430m3/h.

The EF3647 14" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers warranty.


EF3647 14" SPAL THERMO FAN DETAILS
Voltage 12V
Flow Type Puller
Blade Diam. 14 inch (350mm)
Blade Type Straight
Shroud Type Finger Guard
Amps 15
CFM 1430
M3/H 2430
EF3647 14" SPAL THERMO FAN DIMENSIONS
A 367mm / 14.45"
B 382mm / 15.04"
C 168mm / 7.52"
D 331mm / 13.03"
E 88mm / 3.46"
Spal Fan VA10-AP50/C-25A



Article: What Do SPAL Model Numbers Mean?



All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy.
