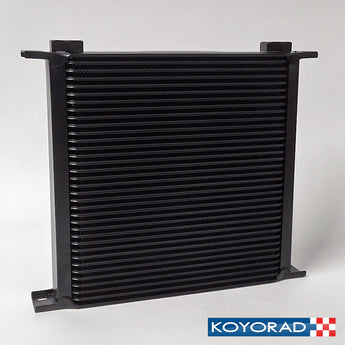

Koyorad XC351111W 35-Row Oil Cooler
Koyorad universal coolers are highly advanced, drawn cup style heat exchangers which are efficient, lightweight, and robust in build quality. Each were developed to effectively cool various automotive grade fluids such as transmission, power steering, engine oil and differential fluids.
All Koyorad oil coolers are tested to 10 bar for added security of quality and performance!
Features:
- Advanced Drawn Cup Construction;
- Two -10 AN ORB (O-Ring Boss / O-Ring Port) Provisions;
- Koyorad Embossed Header Plate;
- Pressure Tested: 10 Bar;
- Deformation Tested: 35 Bar;
- Durable Black Finish;
- SeeĀ Product Notes for more information.
| Oil Coolers | Part # | Rows |
Dimensions (excl. brackets) |
Volume |
 |
KOYO-UOL001 | 10 | 285mm x 76mm x 50mm (11.25" x 3" x 2") |
265ml (0.28 qt. / 9 fl.oz.) |
|
KOYO-UOL002 | 15 | 355mmĀ xĀ 114mmĀ xĀ 50mm (14" x 4.5" x 2") |
445ml (0.47 qt. / 15 fl.oz.) |
|
KOYO-UOL003 | 19 | 285mmĀ xĀ 146mmĀ xĀ 50mm (11.25" x 5.75" x 2") |
473ml (0.50 qt. / 16 fl.oz.) |
|
KOYO-UOL004 | 25 | 285mmĀ xĀ 190mmĀ xĀ 50mm (11.25" x 7.5" x 2") |
596ml (0.63 qt. / 20 fl.oz.) |
|
KOYO-UOL005 | 35 |
285mmĀ xĀ 279mmĀ xĀ 50mm (11.25" x 11" x 2") |
917ml (0.97 qt. /Ā 31 fl.oz.) |
Ā
| -10 ORB Fittings | Part # | Description | Suggested Use |
 |
KOYO-UOILF001 | -10 ORB to -10AN Male | Engine Oil |
 |
KOYO-UOILF002 | -10 ORBĀ to -6AN Male | Power Steering |
 |
KOYO-UOILF003 | -10 ORBĀ toĀ 3/8" Barb |
Power Steering / Transmission |
šĀ Product Notes:
Koyorad Universal Coolers do not include hoses, adapter fittings or sandwich adapters. A general reference guide can be viewed/downloaded here (.pdf) to assist in sourcing the correct adapter fittings and oil filter sandwich adapters for your application. The information should be used as a general guide only, and must be confirmed with a factory service manual and supplier of the parts listed.
All Koyorad universal oil coolers feature versatile 10 AN ORB (O-ring Boss / O-ring Port) provisions at their inlets and outlets. These provisions easily adapt or reduce via AN to AN, or convert from AN to Push-Lock style barb fittings for any needs. Choose Koyorad universal coolers in combination with the fittings listed above to cover all your oil cooling needs.
