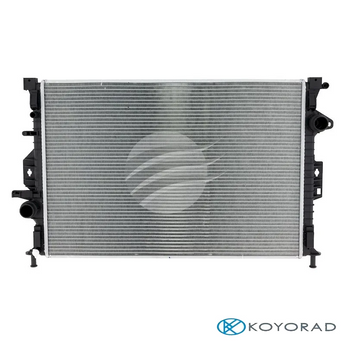

Radiator Ford Focus LW Rover Auto, Volvo XC70, XC60, S60 2007 >
| JR0078J AFTERMARKET RADIATOR SPECIFICATIONS | |
|---|---|
| Suited For | Ford Focus RS LW Rover Auto, Volvo XC70, XC60, S60 2007 >, Range Rover Evoque Petrol/Diesel, Ford Kuga Mondeo Hse Sports, Volvo Focus Freelander S60, Ford Focus LW (7/2011 - 2/2015) 2.0L Duratorq 4 Cyl Turbo Diesel Auto/Man, Ford Mondeo MA/MB/MC (10/2007 - 12/2014) 2.0L Duratorq 4 Cyl Turbo Diesel, 2.3L Duratec 4 Cyl Petrol 2.0L, Ecoboost 4 Cyl Turbo Petrol Auto/Man, Volvo S60 (2010 >) Auto/Man, Volvo S80 (2006 >) Auto/Man, Volvo V60 (2010 >) Auto/Man, Volvo V70 (2006 >) Auto/Man, Volvo XC60 DZ (2/2009 -12/2015) 2.0L B4204T 4 Cyl Turbo Petrol, 2.0L D4204T 4 Cyl Turbo Diesel, 2.0L D5204T4 & 2.4L D5244 D5 5 Cyl Turbo Diesel, 3.0L B6304T4 T6 6 Cyl Turbo Petrol, 3.2L B6324 6 Cyl Petrol Auto/Man, Volvo XC70 (2006 >) Auto/Man |
| Details | Plastic Tanks, Aluminium Core |
| Core Height | 460mm |
| Core Width | 670mm |
| Core Thickness | 27mm |
| Inlet Diameter / Type | 38mm / Quickfit |
| Outlet Diameter / Type | 38mm/ Quickfit |
| Breather Diameter | 15mm & 16mm |
| Trans Cooler | External Oil Cooler, Clip-On Fittings |
| Passenger Warranty | 2 Years/50,000kms , 4 Years Optional |
| Commercial/4WD Warranty | 1 Year/25,000kms |
| 📐 CORRECTLY MEASURING A RADIATOR |
|---|
|
To measure the height of the radiator assembly, you must measure from under the top tank header plate to the top of the bottom tank header plate. Never measure a radiator from the top of the top tank to the bottom of the bottom tank. To measure the radiator core width, you only measure from the outside of the fins on one side to outside the fins on the other or side bracket to side bracket. The sideband is never taken into consideration when measuring the width of the core. To measure the thickness of the core, you measure from the outside of the fin to outside on the other side of that fin. Radiator cores come in a vast range of thicknesses ranging from 16mm to 73mm for most automotive cars, light commercial, light trucks and 4WD.
|
Shipping
| Shipping Info |
|---|
 Regular Parcel Post: TNT / FedEx: Radiator Units: Customer Collection / Pick Up: |
Returns
| Returns Policy |
|---|
 Goods that have been incorrectly supplied, incorrectly advertised or damaged in transit can be returned at no cost to you. Pre-paid mailing options will be provided in these cases. In the case of an incorrect part ordered or a wrong-fitting part being ordered by the customer, return postage must be paid by the customer.
While all care is taken to ensure the correct supply of goods, no responsibility whatsoever is accepted by Thermofans.com.au for the fitment of incorrect parts. The onus is clearly with the purchaser to ensure the parts are correct for the particular application. Any costs or damages from the fitment of incorrect parts are entirely the responsibility of the fitter.
|
