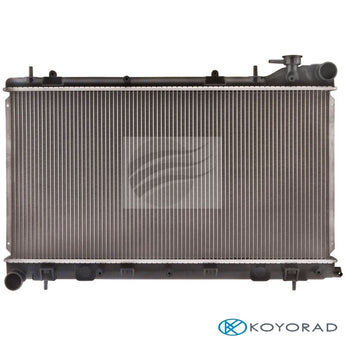

Radiator Subaru Forester 2002-2005 Manual, w/Filler Neck
|JR7171J AFTERMARKET RADIATOR SPECIFICATIONS
|Subaru Forester 2002-2005 Manual, w/Filler Neck
|Plastic Tanks, Aluminium Core
See JR7017J for Auto version
See JR7128J for Auto version w/no Bleed Pipe
See JR7125J for no Filler & 8mm Bleed Pipe, 90deg Oil Cooler pipes
See JR7130J for 8mm Bleed Pipe, 90deg Oil Cooler pipes
See JR7133J for 90deg Oil Cooler pipes
|Oil Cooler 375mm
|2 Years/50,000kms , 4 Years Optional
|📐 CORRECTLY MEASURING A RADIATOR
To measure the height of the radiator assembly, you must measure from under the top tank header plate to the top of the bottom tank header plate. Never measure a radiator from the top of the top tank to the bottom of the bottom tank.
To measure the radiator core width, you only measure from the outside of the fins on one side to outside the fins on the other or side bracket to side bracket. The sideband is never taken into consideration when measuring the width of the core.
To measure the thickness of the core, you measure from the outside of the fin to outside on the other side of that fin. Radiator cores come in a vast range of thicknesses ranging from 16mm to 73mm for most automotive cars, light commercial, light trucks and 4WD.
