Koyorad

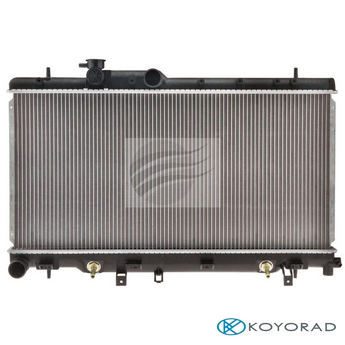

Radiator Subaru Liberty 1998-03, Outback, Auto, Impreza 2005-07
JR7025J AFTERMARKET RADIATOR SPECIFICATIONS | |
---|---|
Suited For | Subaru Liberty 1998-03, Outback Auto, Impreza 2005-07 |
Details | Plastic Tanks, Aluminium Core *Check drain plug location Push on transmission lines See JR7758J with unions and 8mm bleed pipe and JR7116J with unions and no 8mm bleeder Also see JR7024J |
Core Height | 340mm |
Core Width | 686mm |
Core Thickness | 16mm |
Inlet Diameter | 38mm |
Outlet Diameter | 38mm |
Trans Cooler | Oil Cooler 375mm |
Passenger Warranty | 2 Years/50,000kms , 4 Years Optional |
Commercial/4WD Warranty | 1 Year/25,000kms |
📐 CORRECTLY MEASURING A RADIATOR |
---|
To measure the height of the radiator assembly, you must measure from under the top tank header plate to the top of the bottom tank header plate. Never measure a radiator from the top of the top tank to the bottom of the bottom tank. To measure the radiator core width, you only measure from the outside of the fins on one side to outside the fins on the other or side bracket to side bracket. The sideband is never taken into consideration when measuring the width of the core. To measure the thickness of the core, you measure from the outside of the fin to outside on the other side of that fin. Radiator cores come in a vast range of thicknesses ranging from 16mm to 73mm for most automotive cars, light commercial, light trucks and 4WD. |
