Jayrad

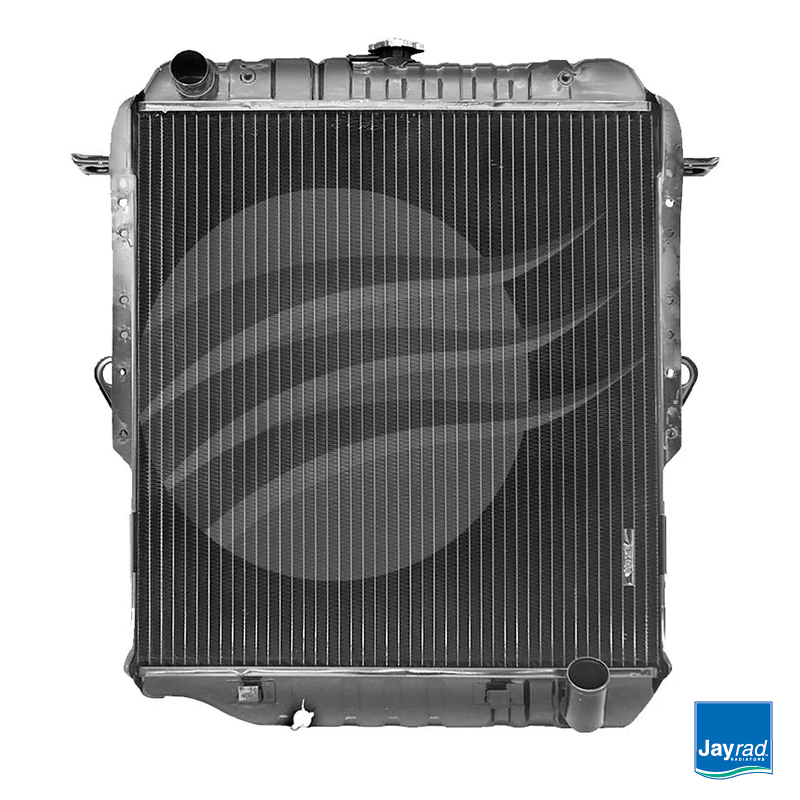

Radiator Toyota LandCruiser 70 Series, Manual, 4.2L, 1999-2007, Heavy Duty
| Suited For: | Toyota LandCruiser 70 Series Manual HDJ78R 2001-06, HDJ79R 2001-06, HZJ78R 1999-2006, HZJ79R 1999-2006 |
| Details: | Brass tanks, Copper Brass core 70mm thick core, 4-Row |
| Alternates |
JR2050J (HZJ75, HZJ78, HZJ79 1990-99) JR2822J (48mm Plastic/Alloy HDJ / HZJ 99-06) JR2826J (48mm Plastic/Alloy HZJ) |
| Core Height (mm) | 560 |
| Core Width (mm) | 525 |
| Core Thickness (mm) | 70 |
| Inlet Diameter (mm) | 38 |
| Outlet Diameter (mm) | 42 |
| Passenger Vehicle Warranty |
2 Years/50,000kms , 4 Years Optional |
| Commercial/4WD Warranty |
1 Year/25,000kms |
| Aftermarket Radiator JR2814J Specifications | |
Measurement Tips
| 📐 CORRECTLY MEASURING A RADIATOR |
|---|
|
To measure the height of the radiator assembly, you must measure from under the top tank header plate to the top of the bottom tank header plate. Never measure a radiator from the top of the top tank to the bottom of the bottom tank. To measure the radiator core width, you only measure from the outside of the fins on one side to outside the fins on the other or side bracket to side bracket. The sideband is never taken into consideration when measuring the width of the core. To measure the thickness of the core, you measure from the outside of the fin to outside on the other side of that fin. Radiator cores come in a vast range of thicknesses ranging from 16mm to 73mm for most automotive cars, light commercial, light trucks and 4WD.
|
