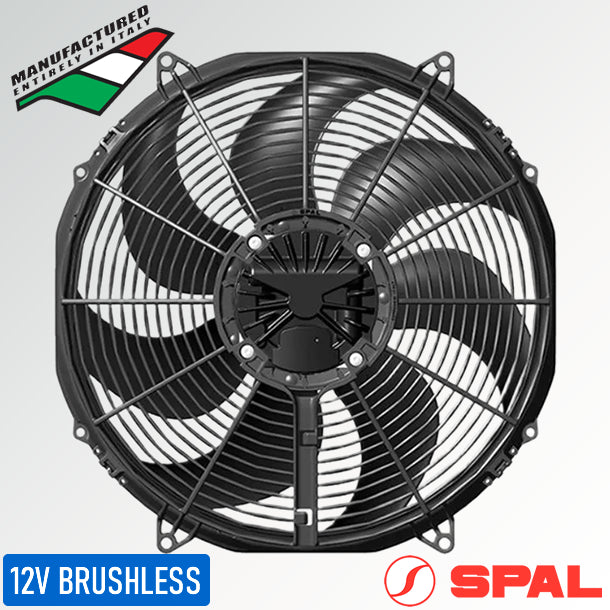

VA91-ABL326P/N-65A 12V 15.2" SPAL Brushless Puller Fan

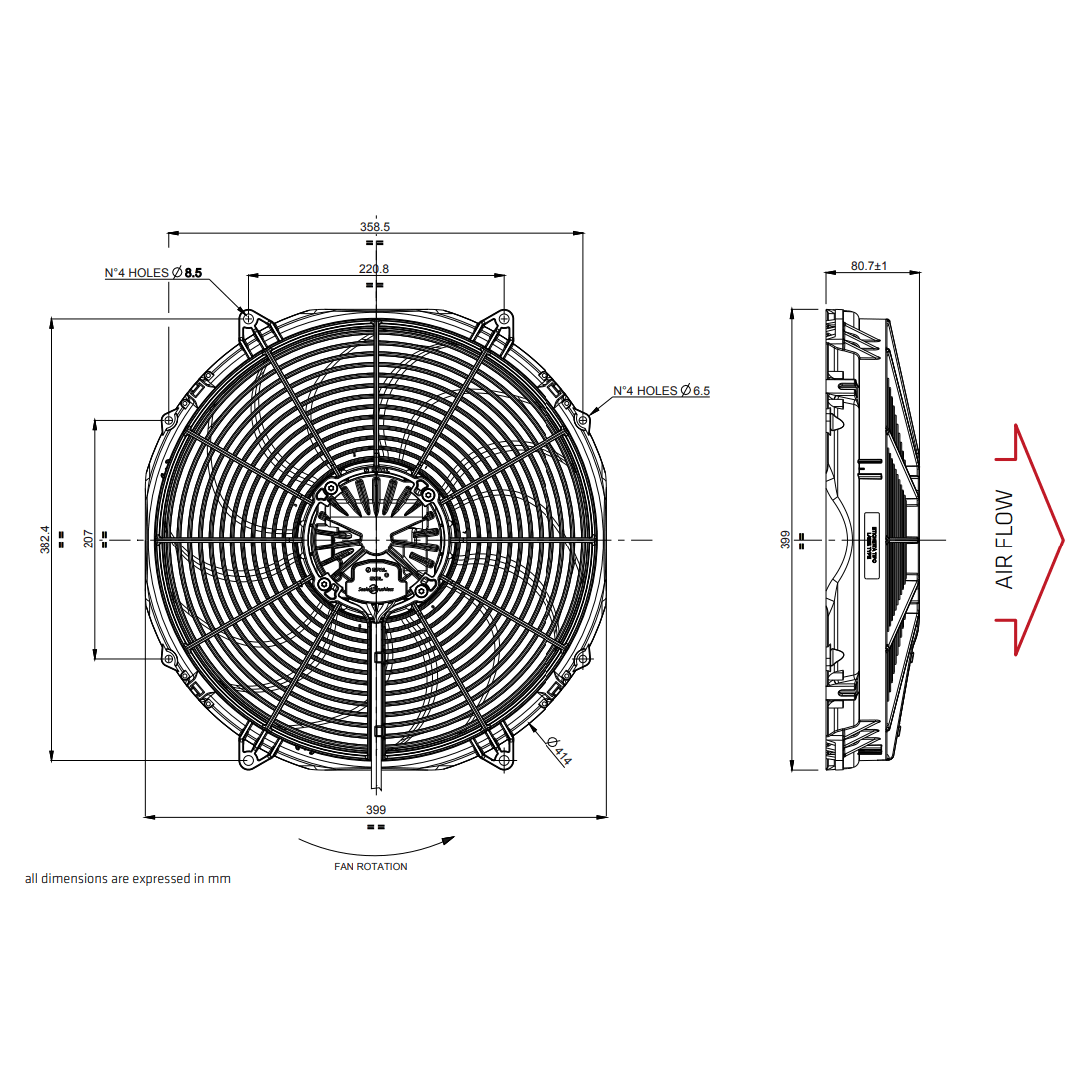

VA91-ABL326P/N-65A 12V 15.2" SPAL Brushless Puller Fan Dimensions
VA91-ABL326P/N-65A 12V 15.2" SPAL Brushless Puller Fan
VA91-ABL326P/N-65A 12V 15.2" SPAL Brushless Puller Fan Dimensions

SPAL Automotive

SPAL Brushless Puller Fan - 15.2" - 12V - 1858 CFM - VA91-ABL326P/N-65A

$979.00
Tax included. Shipping calculated at checkout.
EF4210
The VA91-ABL326P/N-65A 12V 15.2" SPAL Brushless Puller Fan delivers exceptional airflow of 1858 CFM with the reliability and efficiency only a brushless motor can provide.

When your engine bay demands serious cooling without compromise, the SPAL brushless advantage is clear. Unlike conventional brushed motors, the VA91-ABL326P/N-65A runs cooler, draws less current, and lasts significantly longer - making it the smart choice for performance builds, daily drivers, and everything in between. The curved blade design maximises airflow efficiency while minimising noise, so your cooling system works hard without making itself heard.


12V SPAL BRUSHLESS FAN SPECIFICATIONS
SPAL Fan Model # VA91-ABL326P/N-65A
Voltage 12V
Motor Type Brushless (IP6K9K / IP68)
Flow Type Puller
Blade Diameter 15.2 inch (386mm)
Blade Type Curved
Shroud Type Finger Guard
Weight 2.4 kg
CFM 1858
M3/H 3150
Max Fan Speed 2,500 RPM
Min Fan Speed 850 RPM
Sound Pressure 77 ±0.5 dBA (at 1m, lateral)
Operating Voltage 9.0 - 16.0 V
Max Speed Voltage 13.0 - 16.0 V
Current Continuous 19 - 22.5A
Operating Temp -40 to +120 °C
Speed Derating Threshold +85 °C
Storage Temp Range -40 to +125 °C
Lifetime Up to 40,000 hours (mission profile dependent)
Time to Max RPM 14.5 s
Load Dump Protection
 35 V peak
(Pulse 5b - ISO 16750-2:2010)
Reverse Polarity Protection Functional status class C - fully functional after correcting polarity (ISO 16750-1)
Connector Type 4 Pin Yazaki Hybrid
Spec. Sheet View Specifications
Warranty View Warranty Info

WHY CHOOSE A SPAL BRUSHLESS FAN?

SPAL Automotive

  • Longer Service Life: No brushes to wear out, fewer moving parts to fail
  • Lower Current Draw: Easier on your electrical system and alternator
  • Reduced Heat Generation: The motor runs cooler under sustained load
  • Quieter Operation: Smoother motor commutation means less electrical noise and vibration
  • IP68-rated Motor: Fully sealed against water and dust ingress for harsh underbonnet conditions
  • Triple-balanced Blades: Precision balanced for vibration-free, long-term performance
  • 3-year Manufacturer's Warranty: Backed by SPAL's global quality guarantee

Ideal for radiator cooling in performance vehicles, 4WDs, tow vehicles, and any application where reliability and airflow efficiency are non-negotiable.
