SPAL Automotive

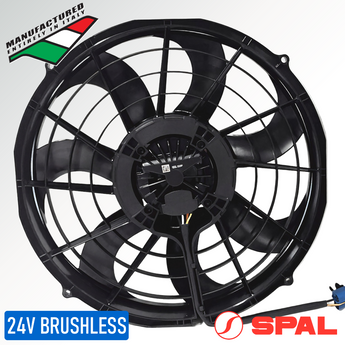

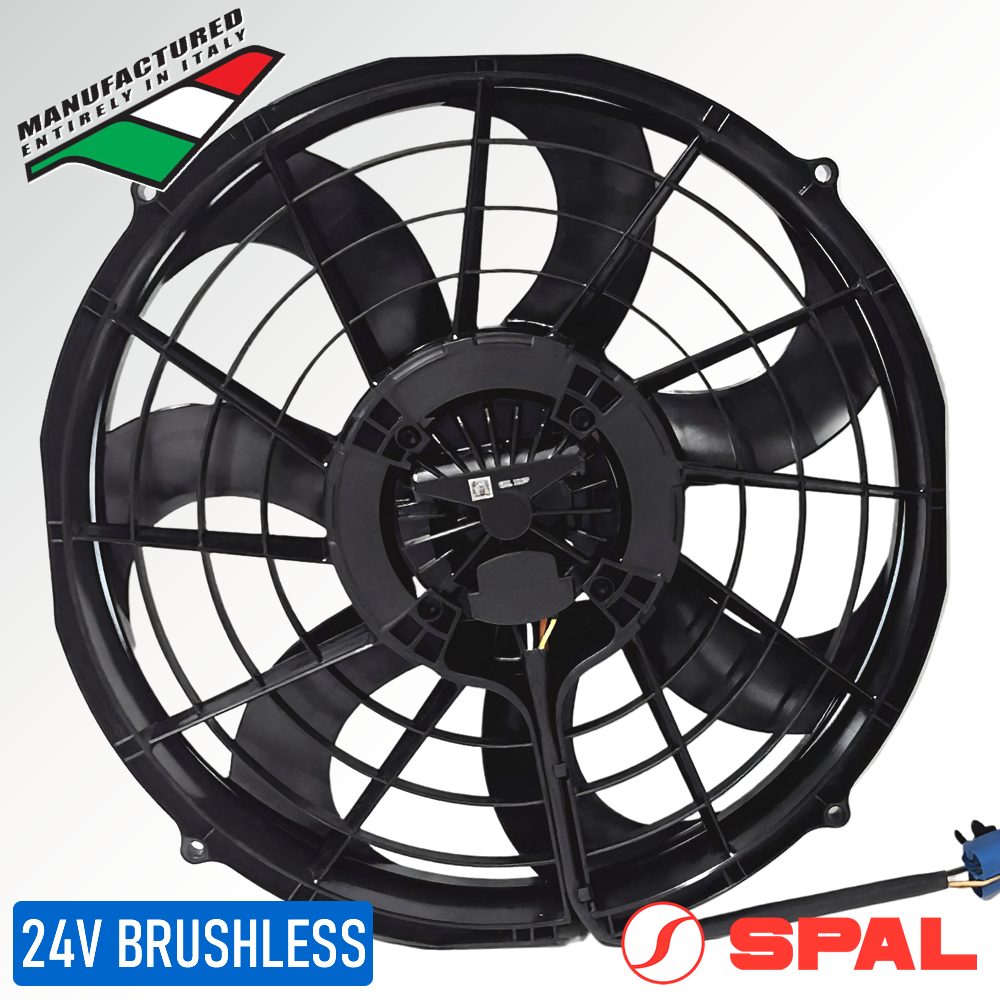

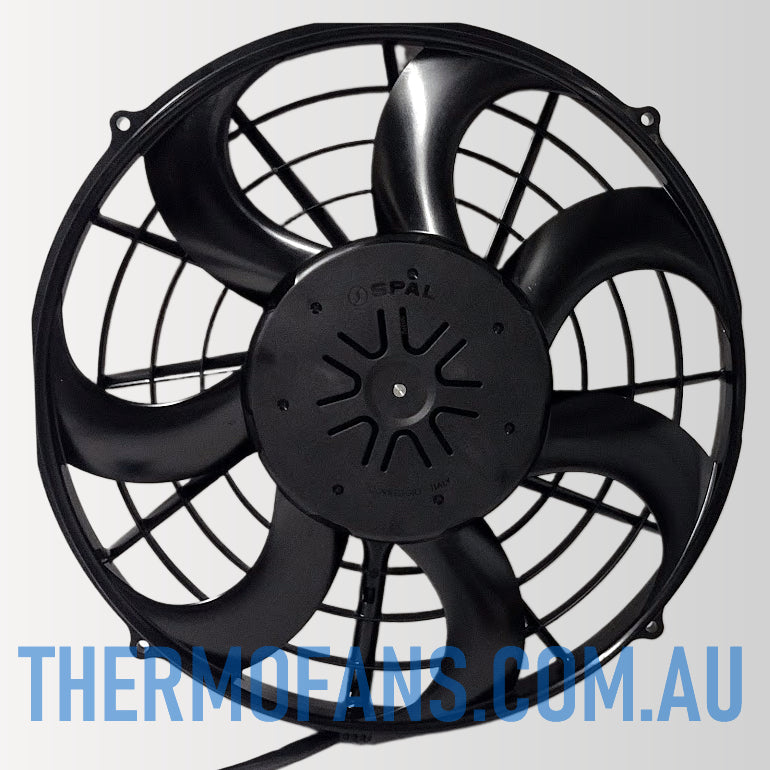

SPAL Brushless Puller Fan - 16" - 24V - 2158 CFM - VA97-BBL339P/R/A/N-103A
This is a special order fan. Please allow 7-10 working days for dispatch.
The VA97-BBL339P/R/A/N-103A 24V 16" SPAL Brushless Puller Fan delivers exceptional airflow of 2158 CFM with the reliability and efficiency only a brushless motor can provide.
When your engine bay demands serious cooling without compromise, the SPAL brushless advantage is clear. Unlike conventional brushed motors, the VA97-BBL339P/R/A/N-103A runs cooler, draws less current, and lasts significantly longer - making it the smart choice for performance builds, daily drivers, and everything in between. The curved blade design maximises airflow efficiency while minimising noise, so your cooling system works hard without making itself heard.
| 24V SPAL BRUSHLESS FAN SPECIFICATIONS | |
|---|---|

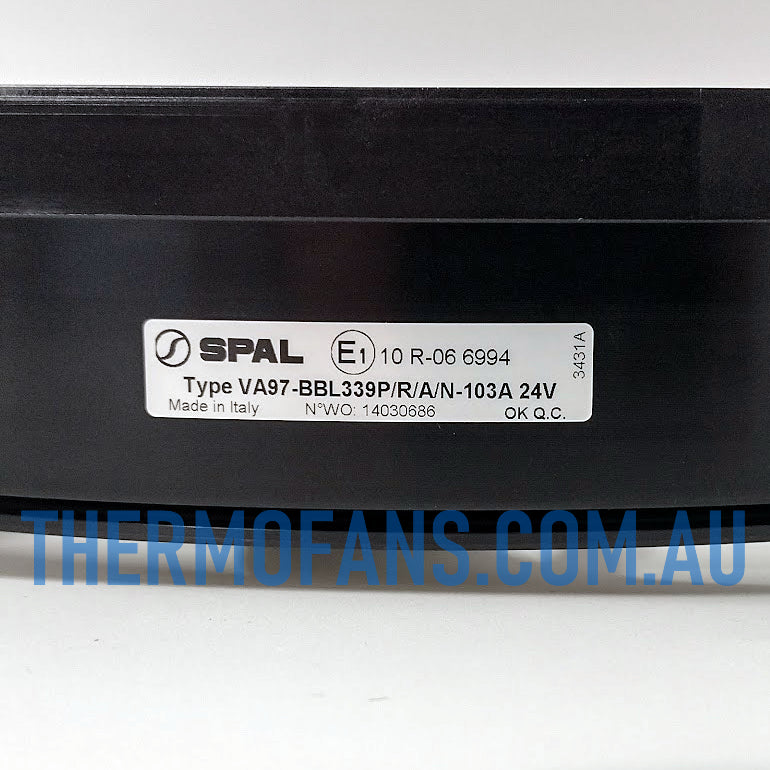

| SPAL Fan Model # | VA97-BBL339P/R/A/N-103A |
| U.S. Part # | 30107092 |
| Voltage | 24V |
| Motor Type | Brushless (IP6K9K / IP68) |
| Flow Type | Puller |

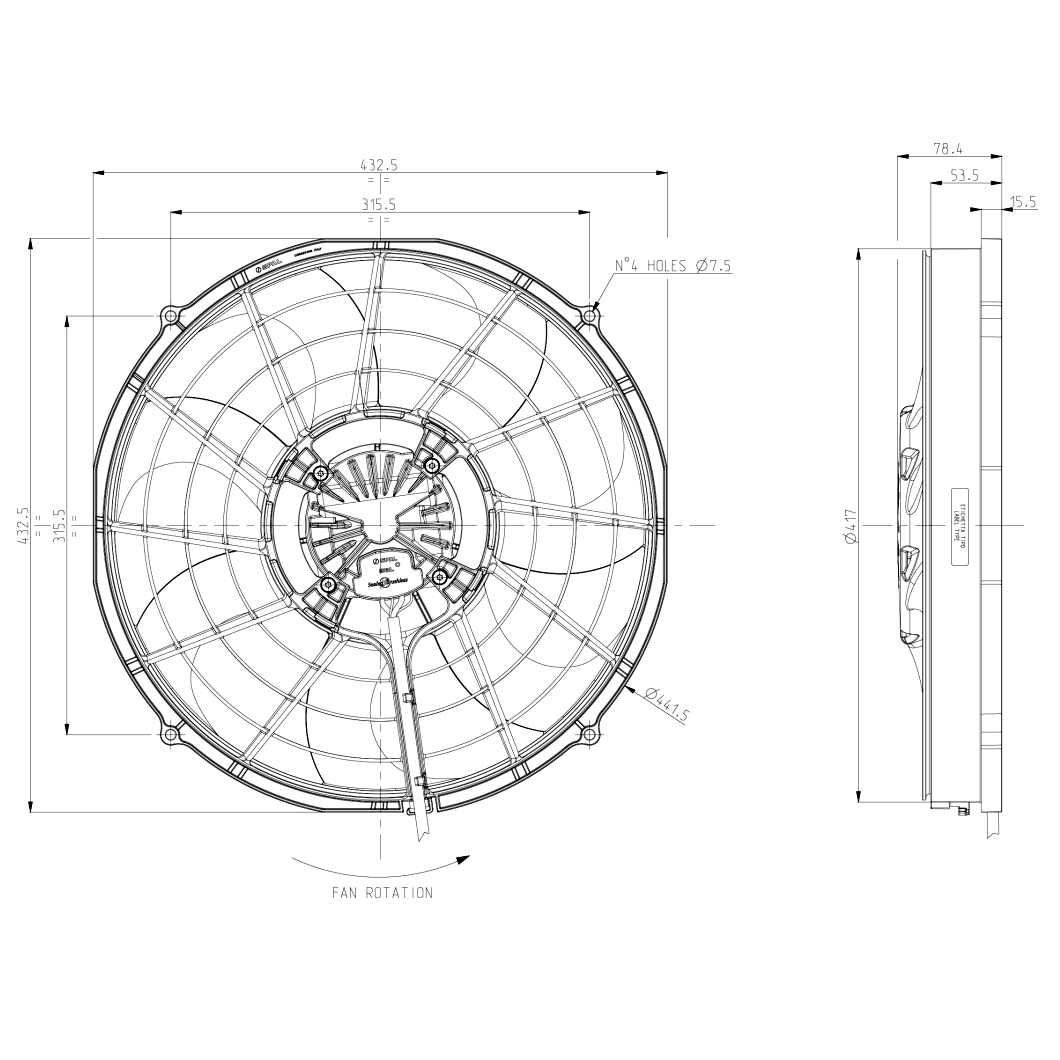

| Blade Diameter | 16 inch (405mm) |
| Blade Type | Curved |
| Shroud Type | Hand Guard |
| Weight | 2.8 kg |
| CFM | 2158 |
| M3/H | 3666 |
| Max Fan Speed | 2,450 RPM |
| Min Fan Speed | 600 RPM |
| Sound Pressure | 73 ±0.5 dBA (at 1m, lateral) |
| Operating Voltage | 16.0-32.0 V |
| Max Speed Voltage | 26.0-32.0 V |
| Operating Temp | -40 to +95 °C |
| Speed Derating Threshold | +85 °C |
| Storage Temp Range | -40 to +125 °C |
| Lifetime | Up to 40,000 hours (mission profile dependent) |
| Time to Max RPM | 17 s |
| Load Dump Protection |
65 V peak (Pulse 5b - ISO 16750 - 2:2010) |
| Reverse Polarity Protection | Functional status class C - fully functional after correcting polarity (ISO 16750-1) |

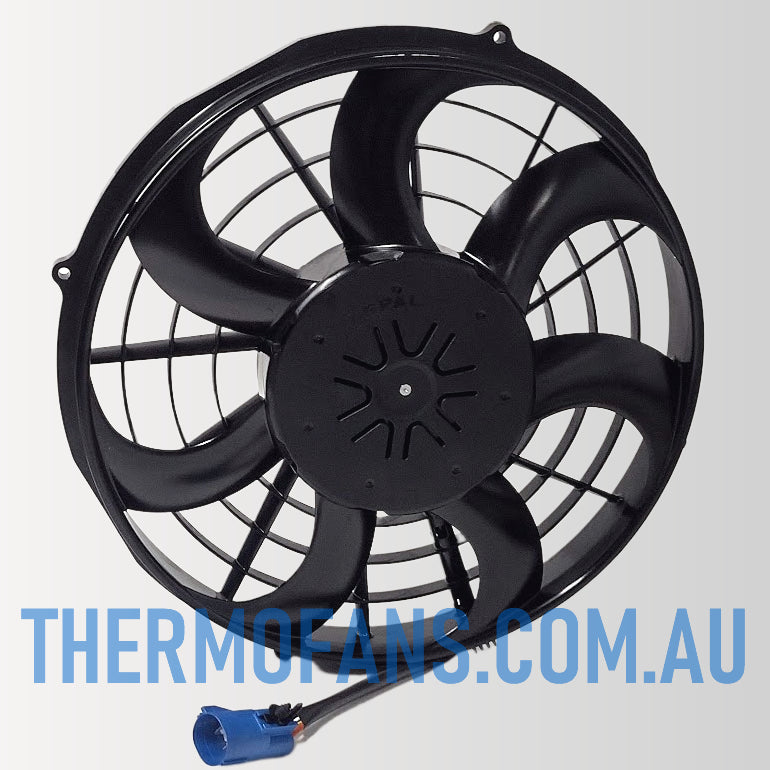

| Connector Type | 4 Pin Yazaki Hybrid |
| Spec. Sheet |
View Specifications
|
| Warranty | View Warranty Info |
| WHY CHOOSE A SPAL BRUSHLESS FAN? |
|---|
|
Ideal for radiator cooling in performance vehicles, 4WDs, tow vehicles, and any application where reliability and airflow efficiency are non-negotiable. |
