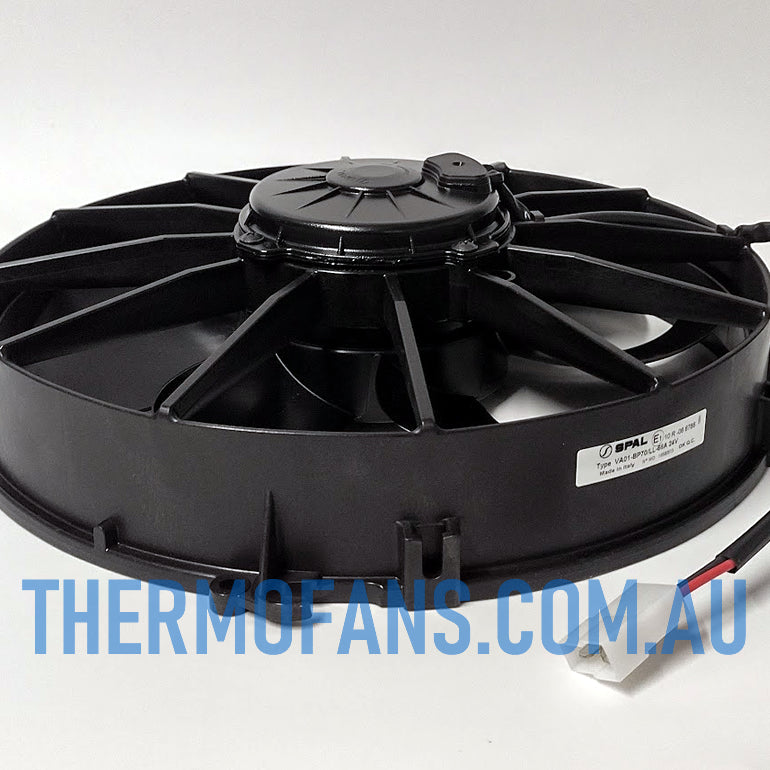

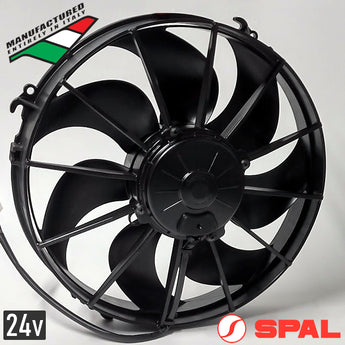

The VA01-BP70/LL-66A (EF3642) 24v 12" SPAL Puller Fan is a High-Output Thermo Fan featuring an Open Shroud and a Skew (curved) Blade Design which can pull up to 1564cfm / 2650m3/h.
The EF3642 12" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers warranty.
| EF3642 12" SPAL THERMO FAN DETAILS | |
|---|---|
| Spal Fan Model # | VA01-BP70/LL-66A |
| Motor Type | Long Life |
| Voltage | 24V |
| Flow Type | Puller |
| Blade Diam. | 12 inch (305mm) |
| Blade Type | Skew |
| Shroud Type | Open Shroud |
| Amps | 7.1 |
| CFM | 1564 |
| M3/H | 2650 |
| Spec. Sheet |
View Specifications
|
| Warranty | View Warranty Info |
| EF3642 12" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 331mm / 13.03" |
| B | 331mm / 13.03" |
| C | 238mm / 9.37" |
| D | 238mm / 9.37" |
| E | 95mm / 3.74" |
 |
|
Article: What Do SPAL Model Numbers Mean?
All Spal Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy.
