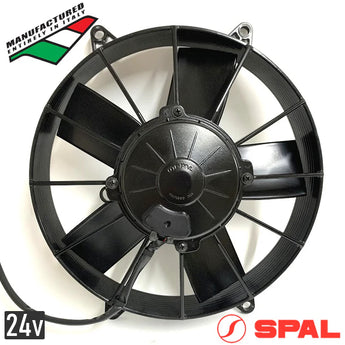

The VA15-BP70/LL-39SĀ (EF3614) 24vĀ 10"Ā SPAL Pusher Fan is aĀ High-Output Thermo Fan featuring aggressive Paddle Blade Design which can push up to 1097cfm / 1860m3/h.
The EF3614 10" Fan is individually balanced for long lifeĀ and features a fully sealed waterĀ & dust-proof long-life motor of superior quality and backed with a 3-year manufacturers warranty.Ā
| EF3614 10" SPAL THERMO FAN DETAILS | |
|---|---|
| Spal Fan Model # | VA15-BP70/LL-39S |
| Voltage | 24V |
| Flow Type | Pusher |
| Blade Diam. | 10 inch (255mm) |
| Blade Type | Straight Paddle |
| Shroud Type | Open Shroud |
| Amps | 5.3 |
| CFM | 1097 |
| M3/H | 1860 |
| Spec. Sheet |
View SpecificationsĀ
|
| Warranty | View Warranty Info |
| EF3614 10" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 269mm / 10.59" |
| B | 303mmĀ / 11.93" |
| C | 145mm / 5.71" |
| D | 288mmĀ / 11.26" |
| E | 95.4mm / 3.76" |
 |
|
Ā
Article:Ā What Do SPAL Model Numbers Mean?
Ā
All Spal Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio,Ā
