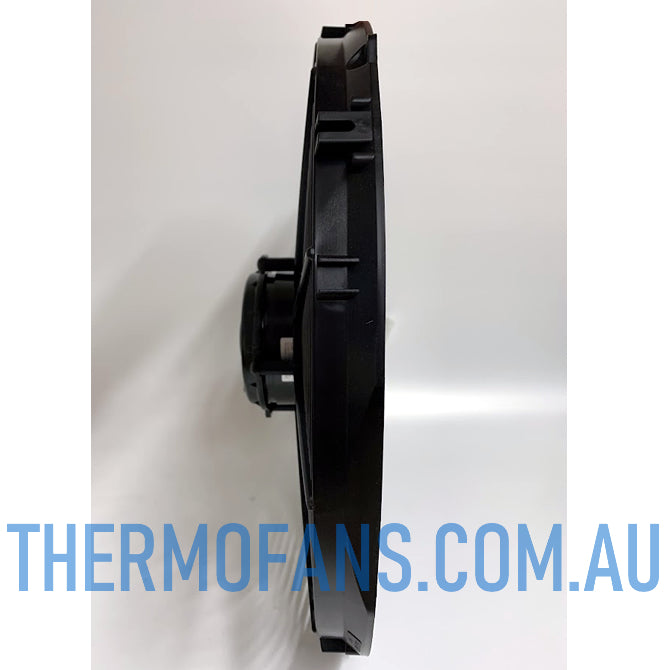

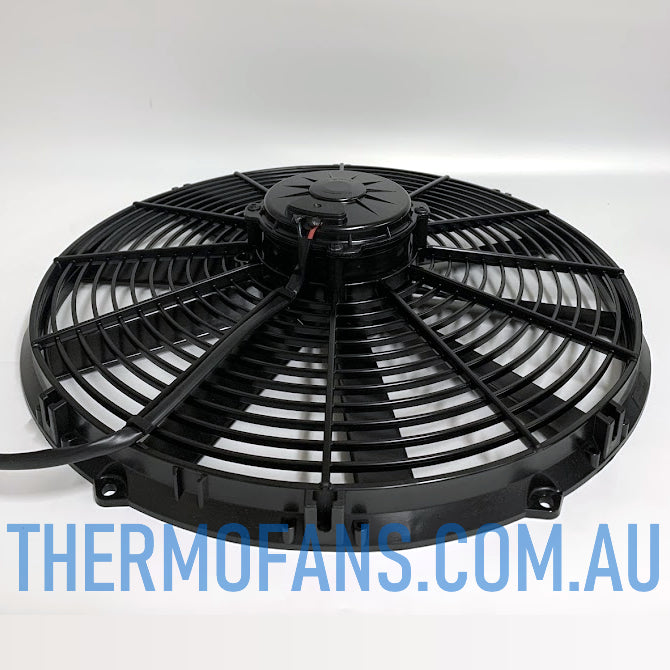

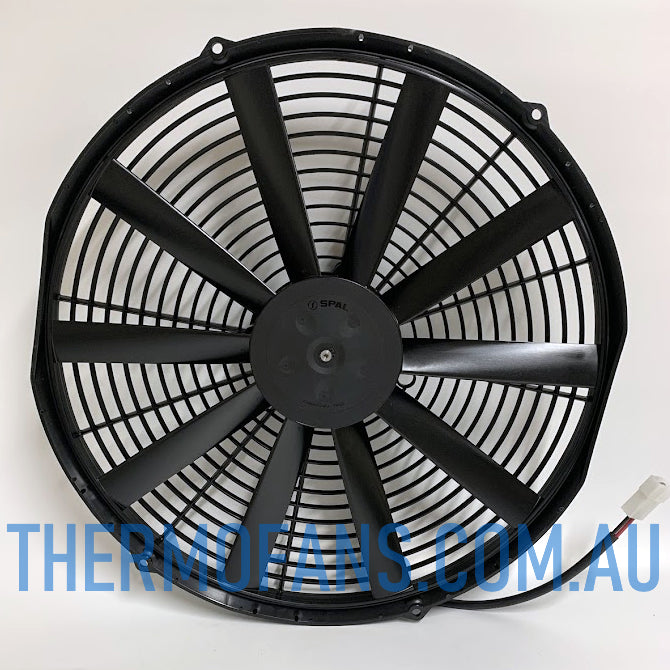

SPAL Thermo Pusher Fan - 16" Straight 24V - 1776 CFM - 7.6Amps

SKU: EF3561

SPAL Automotive

Regular price $409.90

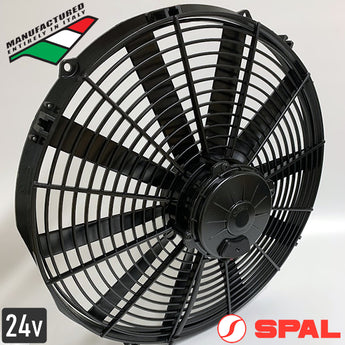

The VA18-BP70/LL-41S (EF3561) 24v 16" SPAL Pusher Fan features a Straight Blade Design which can push up to 1776cfm / 3010m3/h.

Individually balanced for long life, the EF3561 16" Pusher Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers warranty.

EF3561 16" SPAL THERMO FAN DETAILS
Spal Fan Model # VA18-BP70/LL-41S
Voltage 24V
Flow Type Pusher
Blade Diam. 16 inch (385mm)
Blade Type Straight
Shroud Type Finger Guard
Amps 7.6
CFM 1776
M3/H 3010
Spec. Sheet View Specifications
Warranty View Warranty Info
EF3561 16" SPAL THERMO FAN DIMENSIONS
A 397mm / 15.63"
B 412mm / 16.22"
C 206mm / 8.11"
D 357mm / 14.05"
E 88mm / 3.46"
EF3561 24v 16" SPAL Pusher Fan Dimensions



Article: What Do SPAL Model Numbers Mean?



All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy.
