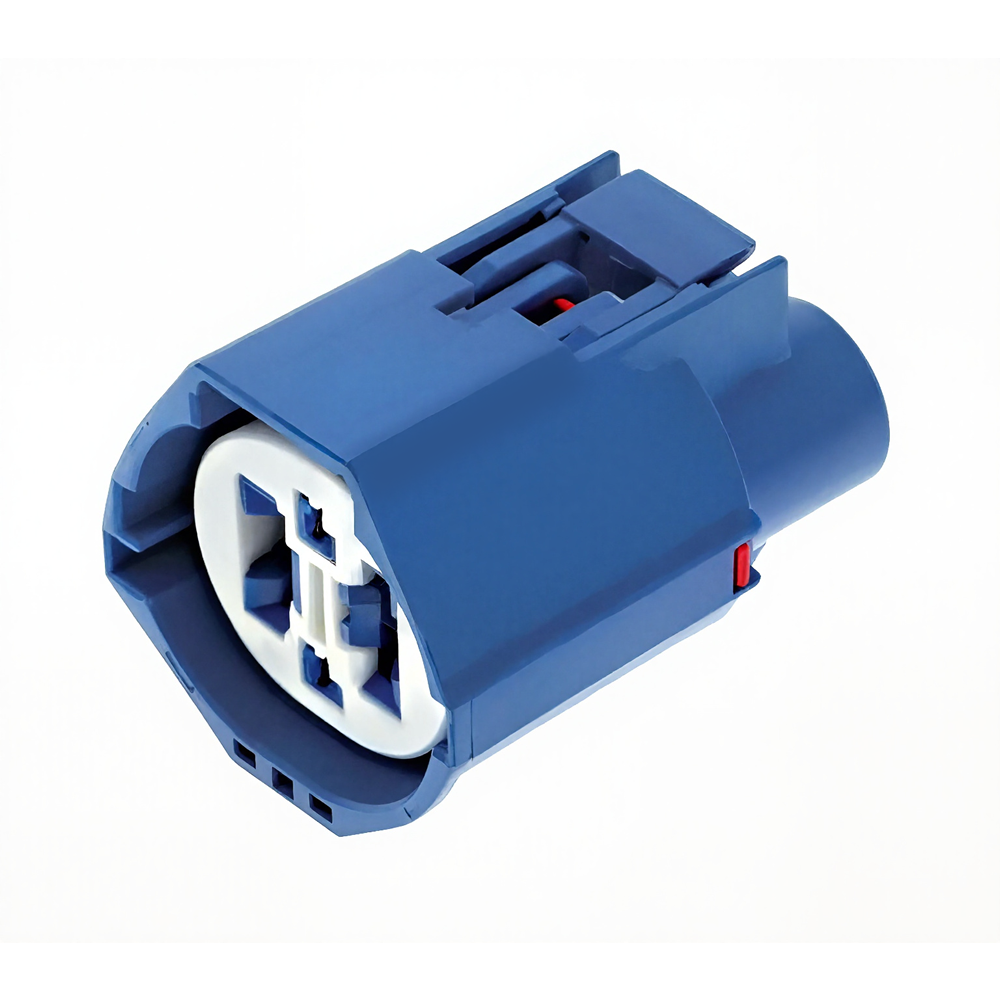

Yazaki 7283-8497-90 connector kit housing

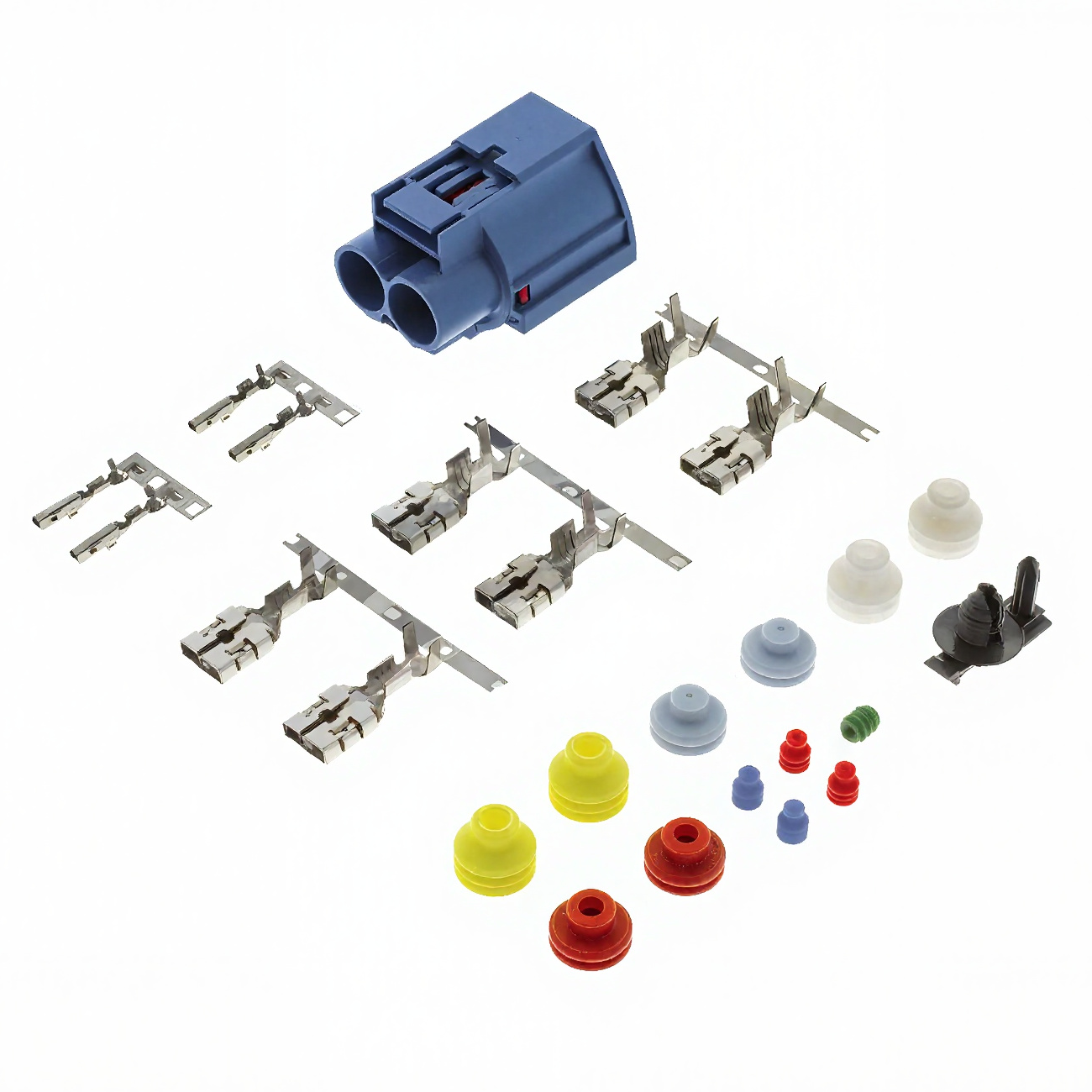

Yazaki 7283-8497-90 connector kit

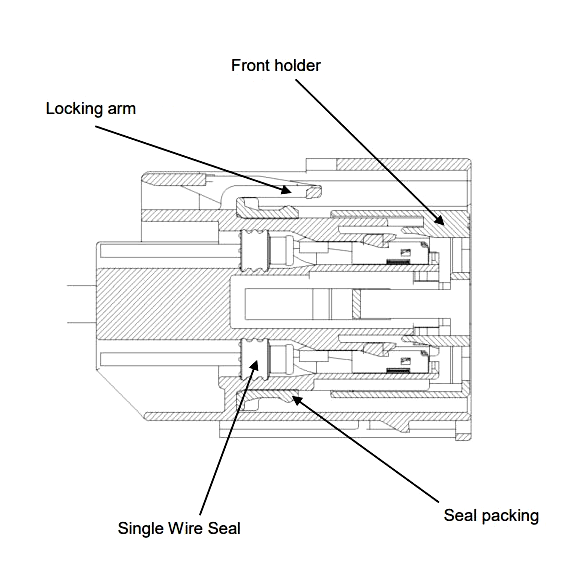

Yazaki 7283-8497-90 connector kit technical cross section illustration
Yazaki 7283-8497-90 connector kit housing
Yazaki 7283-8497-90 connector kit
Yazaki 7283-8497-90 connector kit technical cross section illustration

Yazaki

Yazaki 4-Way Sealed Hybrid Female Connector Kit

$77.00
Tax included. Shipping calculated at checkout.
The Yazaki 7283-8497-90 connector kit is a specialized 4-position hybrid connector from the Yazaki YESC series, engineered to mate seamlessly with the blue male Yazaki connectors found on SPAL brushless fans.

This genuine Yazaki component combines high-amperage power delivery with low-amp ECU data transmission in a single connector, enabling precise electronic speed control of your cooling fan system. The hybrid design eliminates the need for separate connectors, streamlining installation and reducing potential connection points.

Built to OEM specifications with premium materials and construction, this connector ensures reliable performance in demanding automotive cooling applications. Ideal for upgrading or repairing SPAL fan installations where factory-matched connectivity is essential.


SE0030 YAZAKI FEMALE CONNECTOR KIT DETAILS
Reference # 7283-8497-90, 7283849790
Mates with 7282-8497-90 Male
Suits 12V and 24V SPAL Brushless Fans
Connection type Automotive, Wire-to-Wire
Cavity Layout 2 x Power (9.5mm) + 2 x Signal (1.5mm)
Sealing Type Fully Sealed / Waterproof
Housing Material Heavy-Duty PBT
Kit Includes 7283-8497-90 Connector Housing
1.5 type Crimp Ends
58 Y type Crimp Ends
1.5 type Silicone Seals
58 Y type Silicone Seals
EPC Connector Clamp
